Circuit Diagram

[A/T]

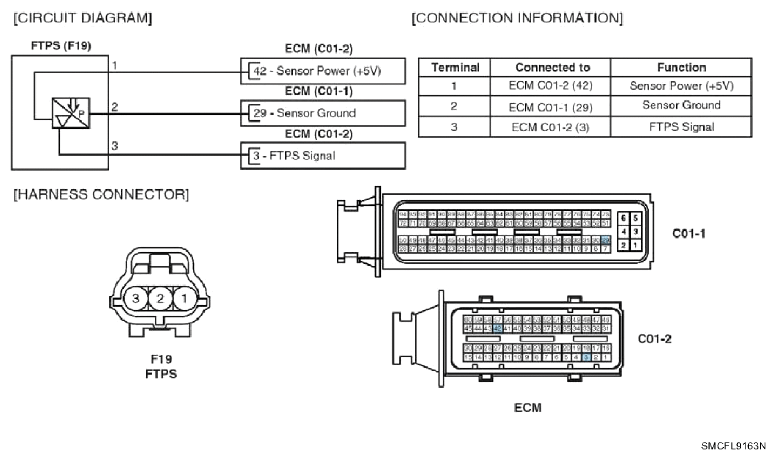

Fig 1: FTPS And ECM Circuit Diagram (A/T)
G06129992Courtesy of HYUNDAI MOTOR CO.

[M/T]

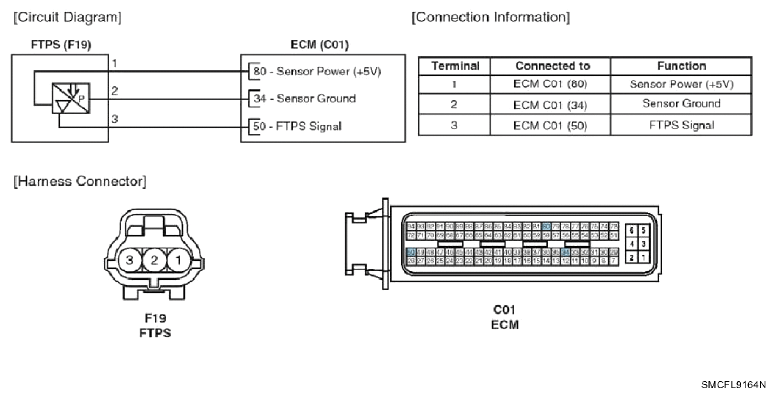

Fig 2: FTPS And ECM Circuit Diagram (M/T)
G06129993Courtesy of HYUNDAI MOTOR CO.
