Circuit Diagram

[A/T]

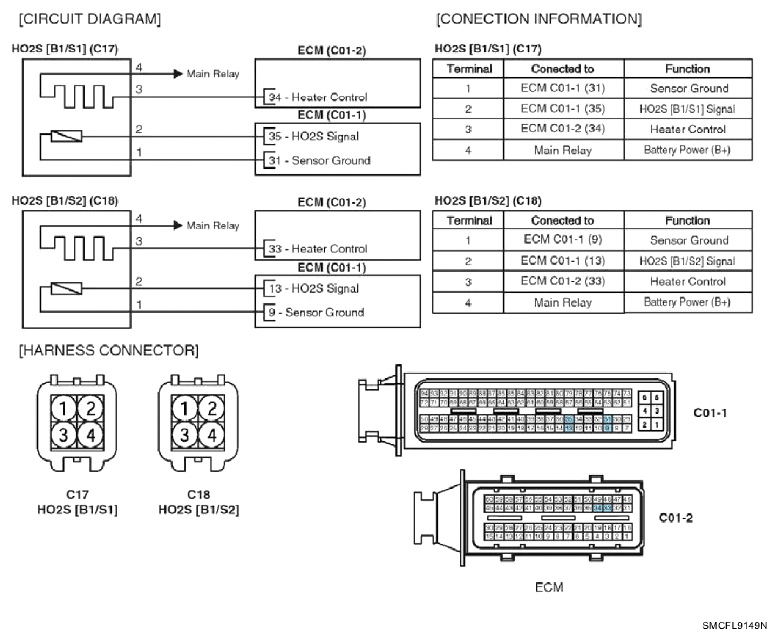

Fig 1: HO2S And ECM Circuit Diagram (A/T)
G06129988Courtesy of HYUNDAI MOTOR CO.

[M/T]

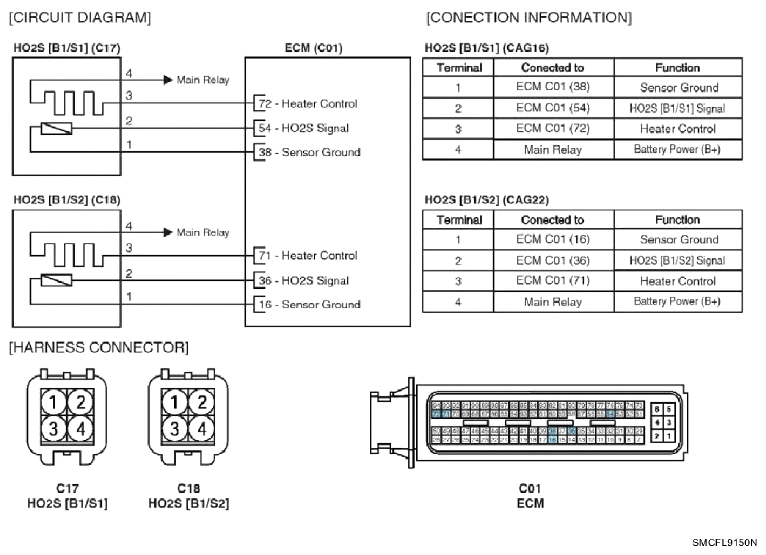

Fig 2: HO2S And ECM Circuit Diagram (M/T)
G06129989Courtesy of HYUNDAI MOTOR CO.
