Circuit Diagram

[A/T]

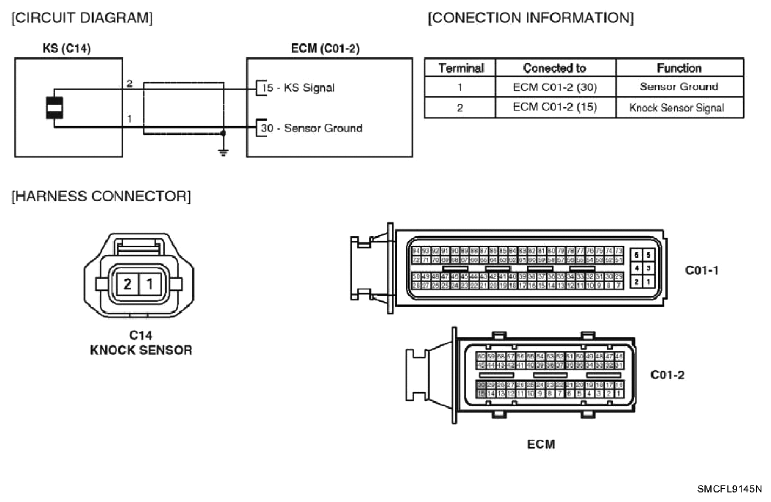

Fig 1: Knock Sensor And ECM Circuit Diagram (A/T)
G06129984Courtesy of HYUNDAI MOTOR CO.

[M/T]

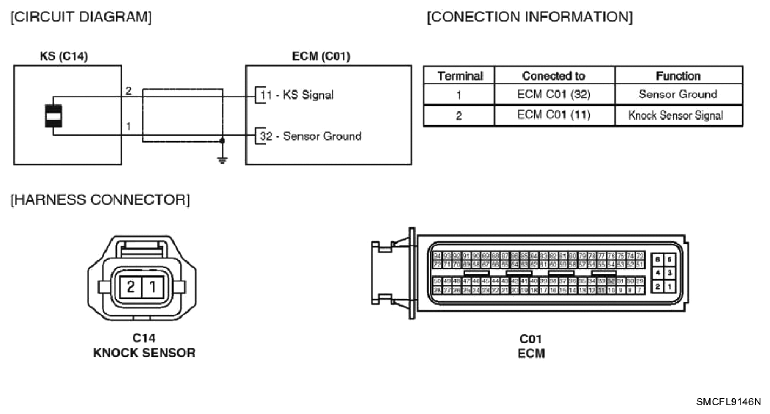

Fig 2: Knock Sensor And ECM Circuit Diagram (M/T)
G06129985Courtesy of HYUNDAI MOTOR CO.
