Circuit Diagram

[A/T]

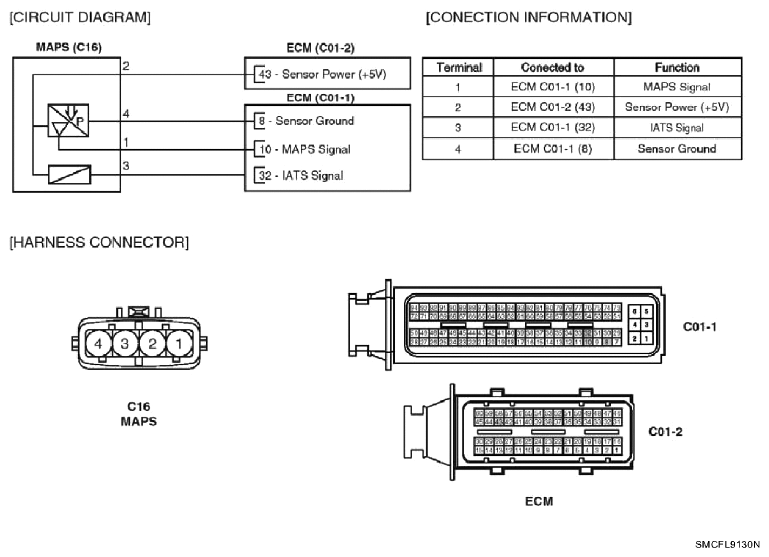

Fig 1: Fuel System Circuit Diagram (A/T)
G06129963Courtesy of HYUNDAI MOTOR CO.

[M/T]

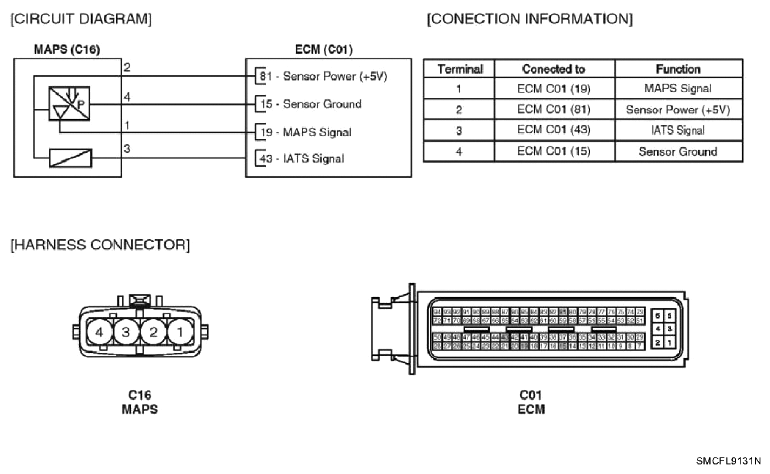

Fig 2: Fuel System Circuit Diagram (M/T)
G06129964Courtesy of HYUNDAI MOTOR CO.
