Circuit Diagram

[A/T]

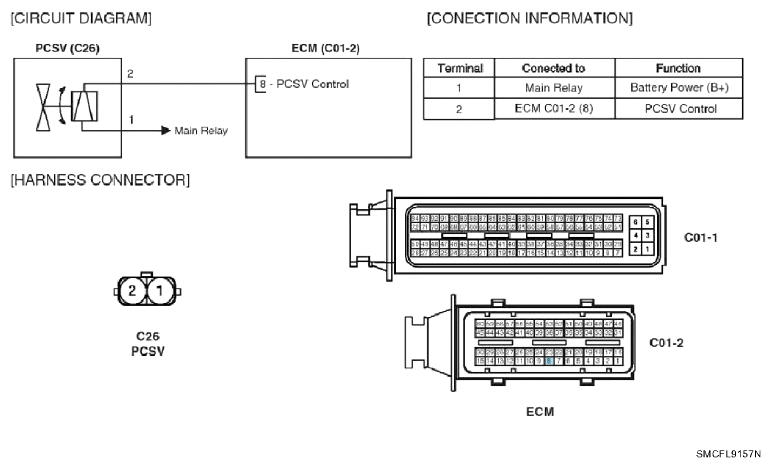

Fig 1: PCSV And ECM Circuit Diagram (A/T)
G06130001Courtesy of HYUNDAI MOTOR CO.

[M/T]

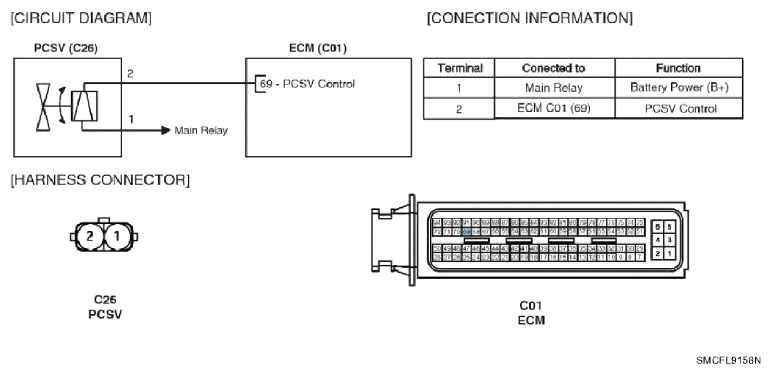

Fig 2: PCSV And ECM Circuit Diagram (M/T)
G06130002Courtesy of HYUNDAI MOTOR CO.
