Circuit Diagram

[A/T]

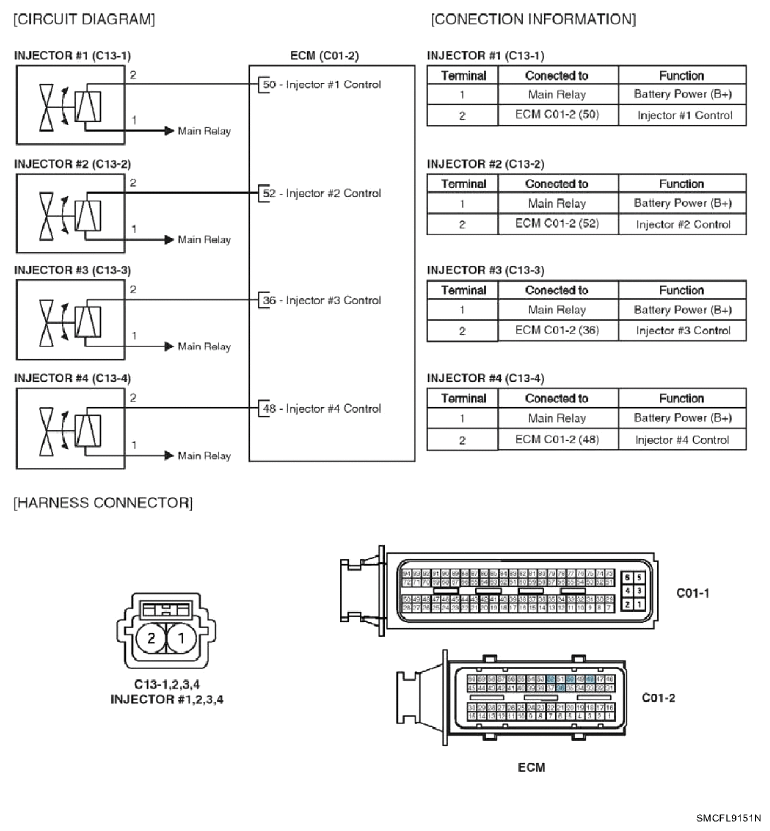

Fig 1: ECM And Injector Circuit Diagram (A/T)
G06129995Courtesy of HYUNDAI MOTOR CO.

[M/T]

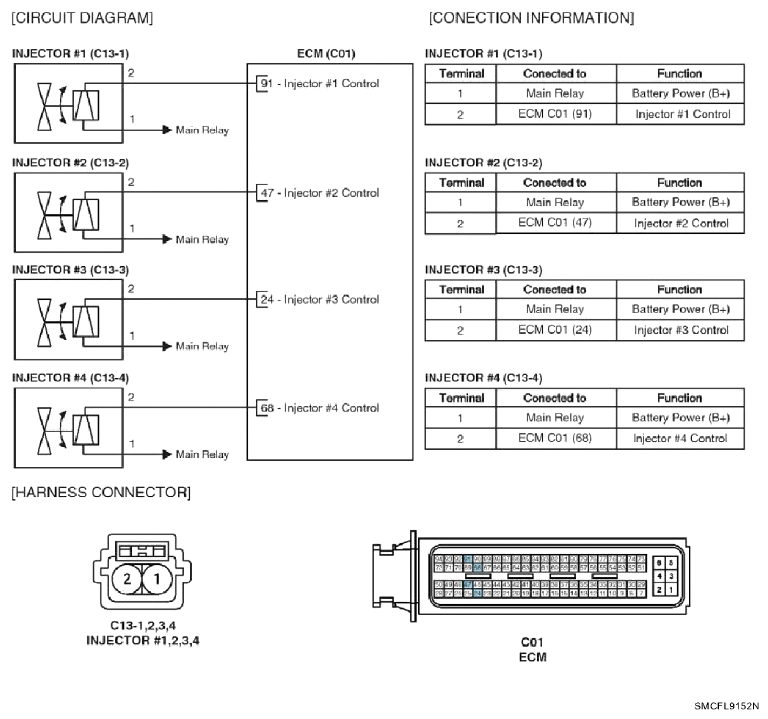

Fig 2: ECM And Injector Circuit Diagram (M/T)
G06129996Courtesy of HYUNDAI MOTOR CO.
