Manifold Absolute Pressure Sensor (MAPS): Specification
VOLTAGE SPECIFICATION
Pressure (kPa)
Output Voltage (V)
20.0
0.79
46.66
1.84
101.32
4.0

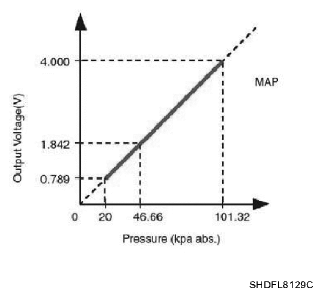

Fig 1: Voltage And Pressure Graph
Courtesy of HYUNDAI MOTOR CO.
