Schematic Diagram

(A/T)

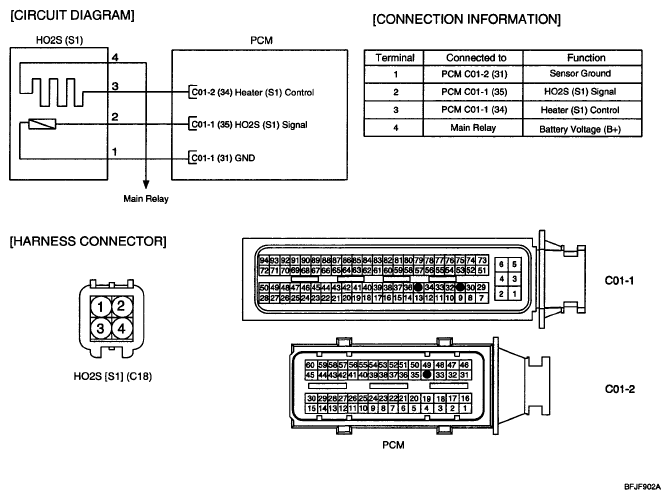

Fig 1: HO2S And PCM Schematic Diagram (A/T)
G04801535Courtesy of HYUNDAI MOTOR CO.

(M/T)

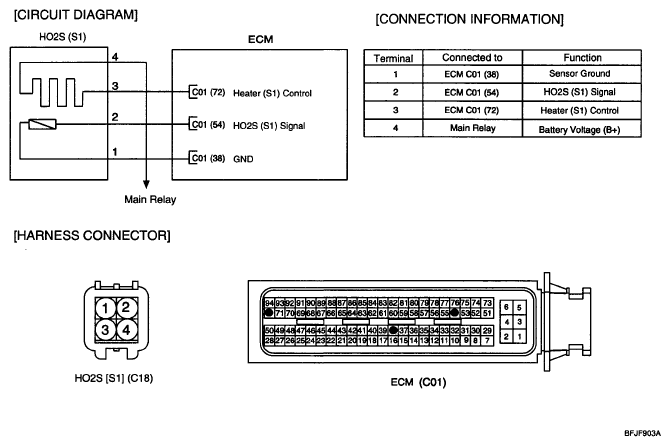

Fig 2: HO2S And ECM Schematic Diagram (M/T)
G04801536Courtesy of HYUNDAI MOTOR CO.
