Home › Hyundai › 2009 › Accent GLS, Standard › Repair and Diagnosis › Engine Mechanical › Starter › Starting System › Starter › Components

Starting System: Starter: Components

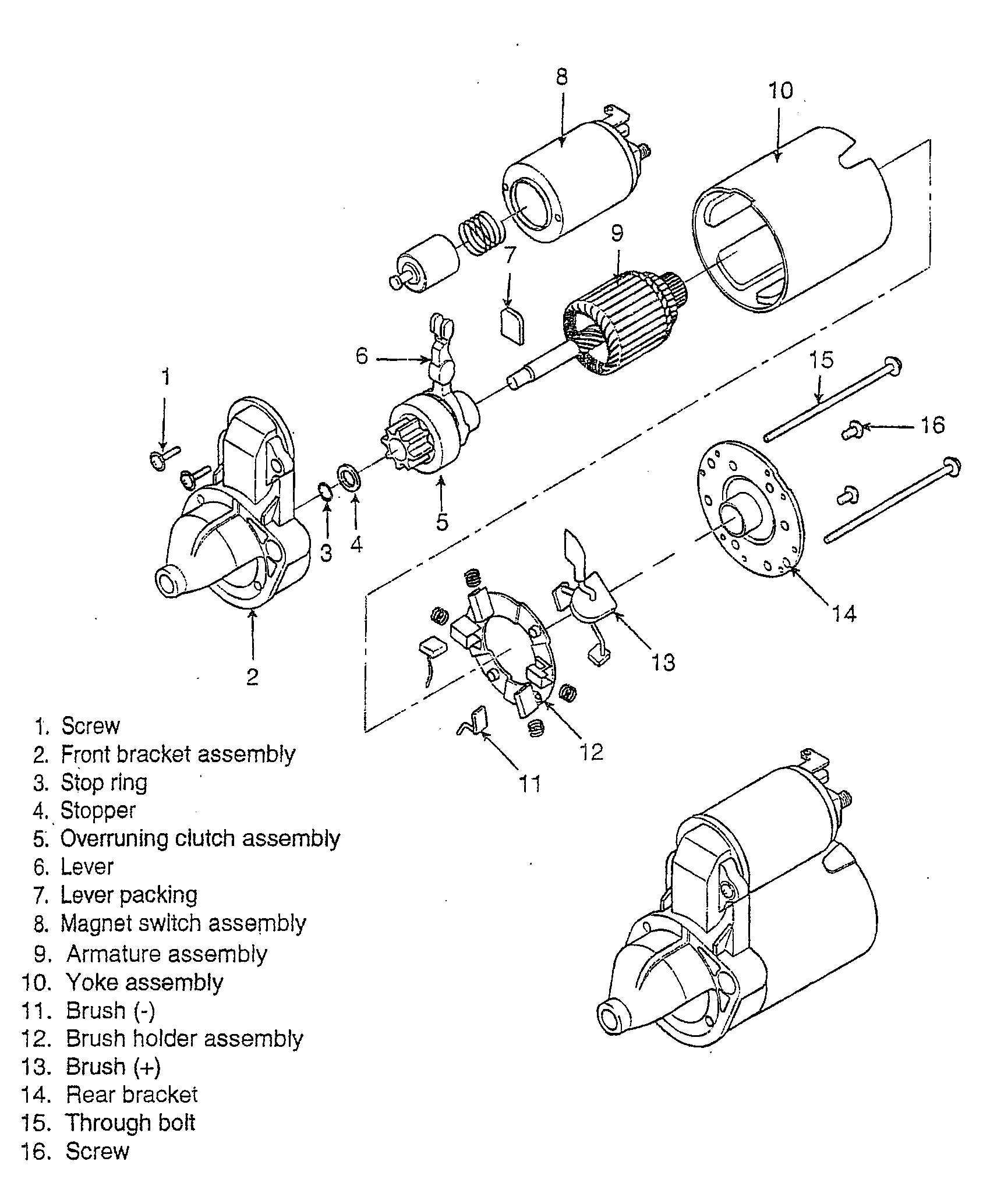

Fig 1: Identifying Starter Components
G00455561Courtesy of HYUNDAI MOTOR CO.
