Multimedia jack: Components

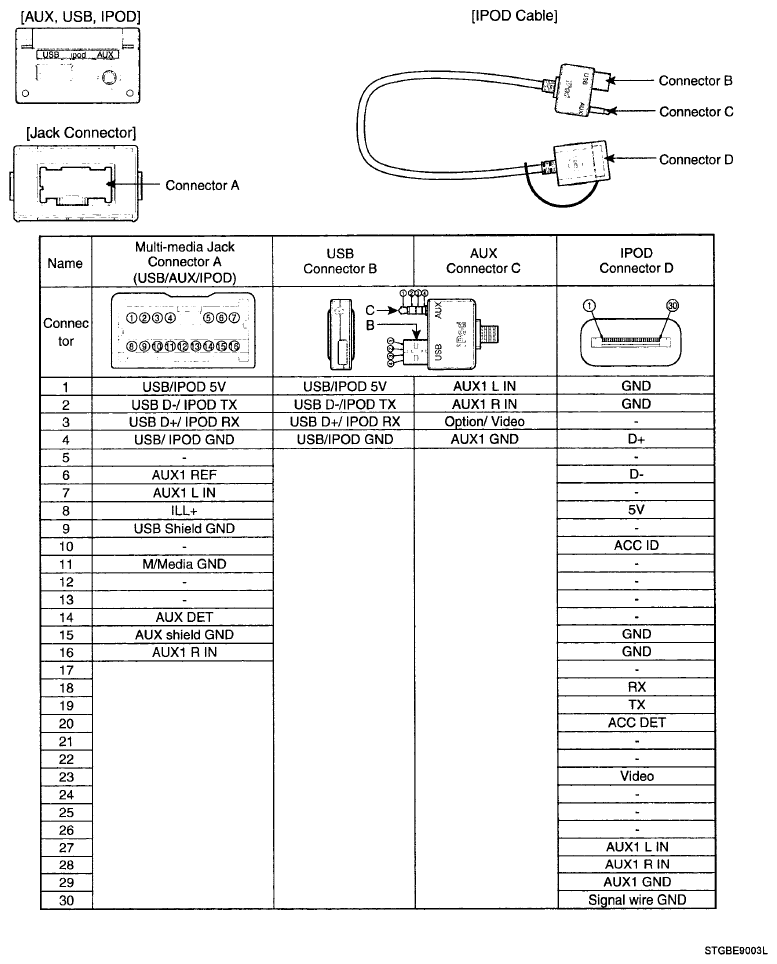

Fig 1: Identifying Multimedia Jack Components
G06104573Courtesy of HYUNDAI MOTOR CO.
