Front Seat: Components

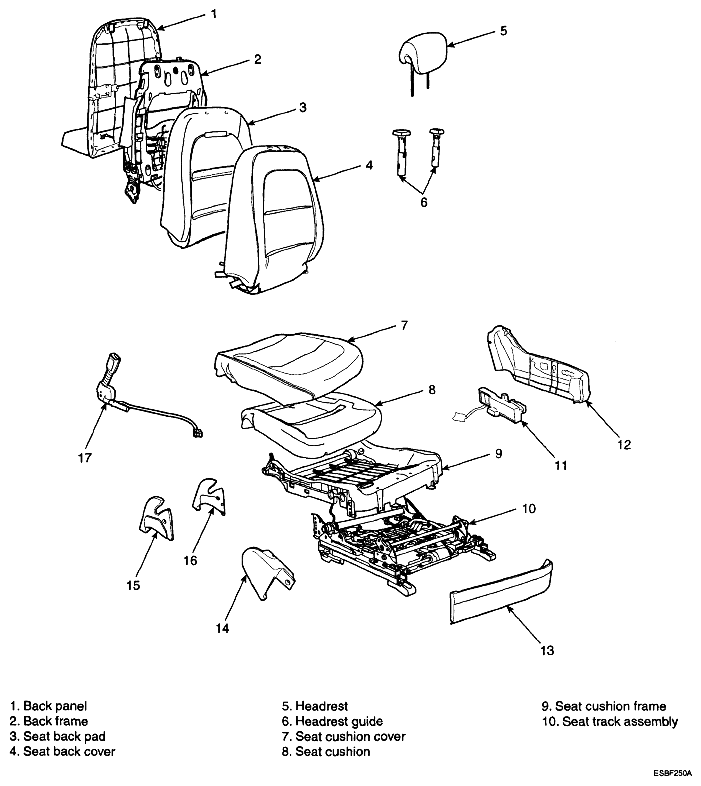

Fig 1: Identifying Front Seat Components
G04881210Courtesy of HYUNDAI MOTOR CO.
