Seat Assembly Replacement

Remove the seat assembly mounting cover (A).
After loosening the seat assembly mounting bolts and nuts, remove the seat assembly (B).

Fig 1: Seat Assembly And Seat Assembly Mounting Cover With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (C), and remove the seat assembly.

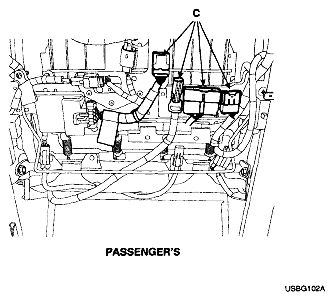

Fig 2: Identifying Seat Assembly Connector (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

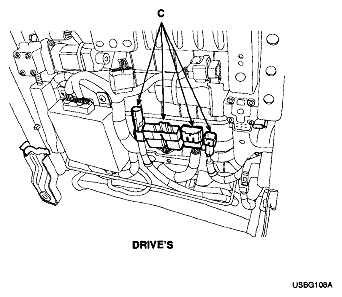

Fig 3: Identifying Seat Assembly Connector (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.

CAUTION: SEAT MOUNTING BOLT INSTALLATION PROCEDURE

Set the into the most rearward position. Check then each slide is locked, and then Tighten the front mounting bolt temporarily.

Fig 4: Identifying Seat In Rearward Position
Courtesy of HYUNDAI MOTOR CO.
Set the seat into most forward position. Check that each slide is locked, and then Tighten the rear mounting bolt completely.

Fig 5: Identifying Seat In Forward Position
Courtesy of HYUNDAI MOTOR CO.
Set the seat into the most rearward position. Check the front mounting bolt completely.

Fig 6: Identifying Seat In Rearward Position
Courtesy of HYUNDAI MOTOR CO.
Check that the seat operates to and front smoothy and the locking portion locks properly.
