Rear Seat: Components

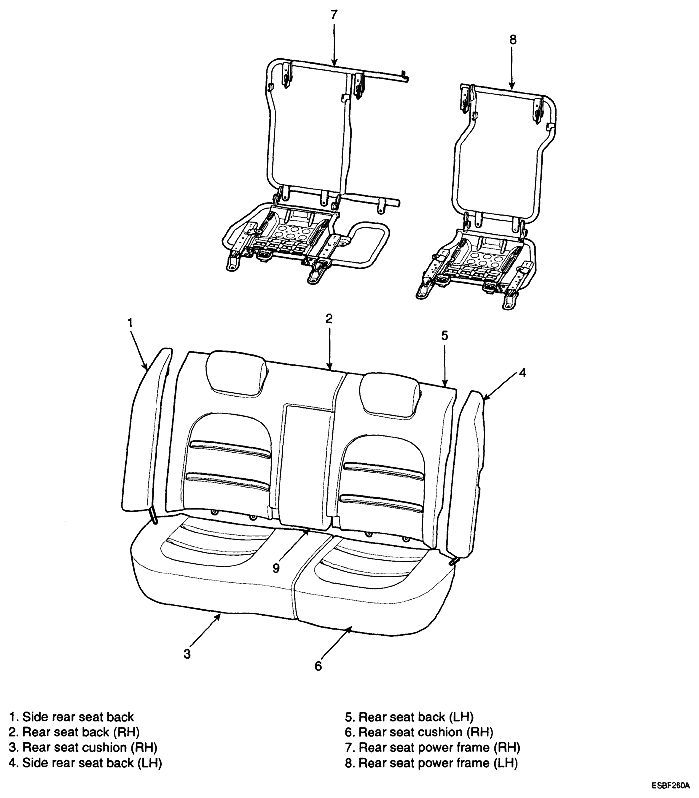

Fig 1: Identifying Rear Seat Components
G04881234Courtesy of HYUNDAI MOTOR CO.
