Seat Belt: Components

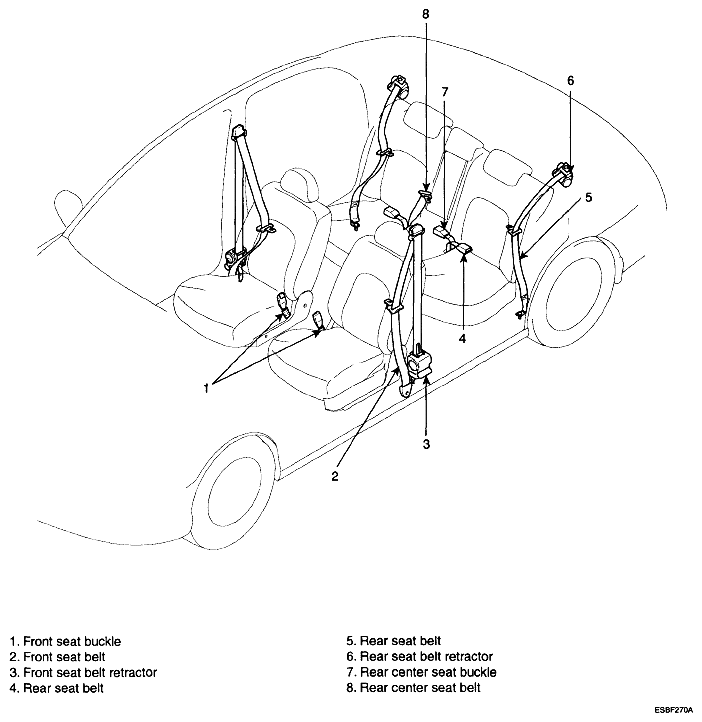

Fig 1: Identifying Seat Belt Components
G04881240Courtesy of HYUNDAI MOTOR CO.
