Standard Flow Of Diagnostic Troubleshooting: Notes

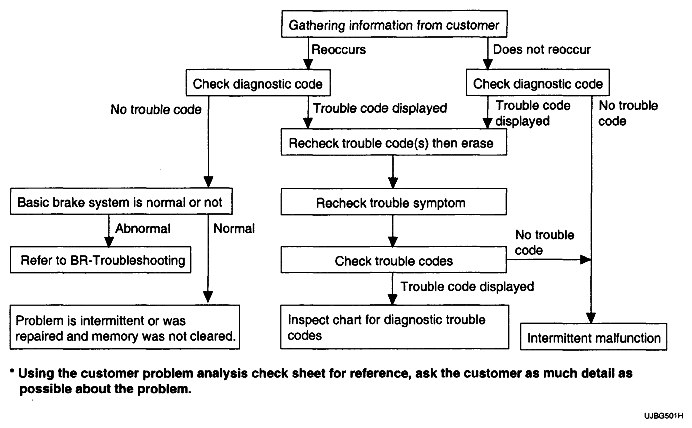

Fig 1: Diagnostic Troubleshooting - Flow Chart
G04880923Courtesy of HYUNDAI MOTOR CO.
