Front Hub/Knuckle: Components

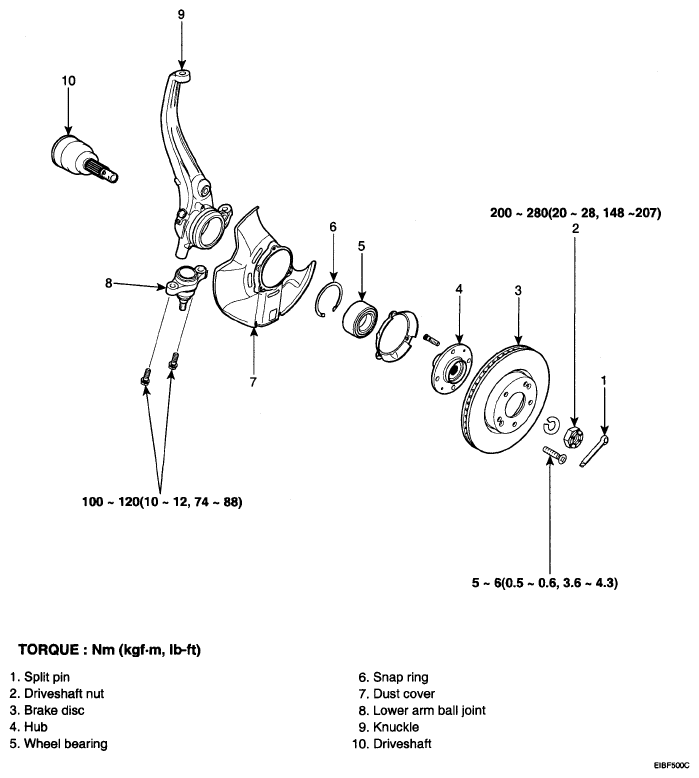

Fig 1: Front Hub/Knuckle Replacement Components With Torque Specifications

G04880306

Courtesy of HYUNDAI MOTOR CO.
