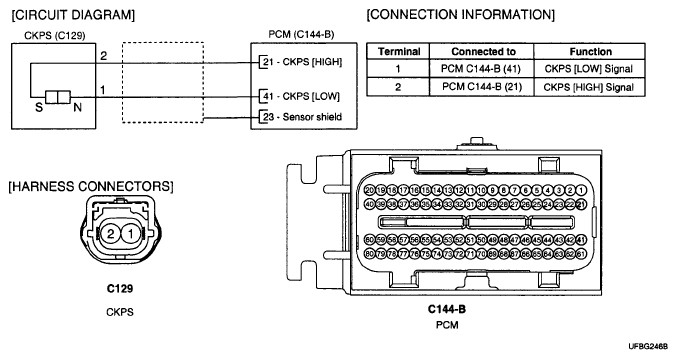

Home › Hyundai › 2009 › Azera GLS › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control/Fuel System (G6DB/G6DA - GSL 3.3/3.8) › Gasoline Engine Control System › Crankshaft Position Sensor (CKPS) › Schematic Diagram
