Audio Assembly Replacement

WARNING: This page is about a different car, the 2008 Hyundai Azera. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center fascia panel (See CENTER FASCIA PANEL REPLACEMENT ).
Loosen the screws.
Disconnect the audio connector and antenna cable, then remove the audio assembly (A).

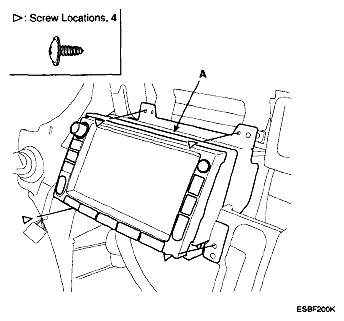

Fig 1: Identifying Audio Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
