Lower Panel Replacement

WARNING: This page is about a different car, the 2008 Hyundai Azera. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crash pad side cover (See COVER REPLACEMENT ).
After loosening the crash pad lower panel mounting screw, then remove the lower panel (B).
Disconnecting the connector (A).

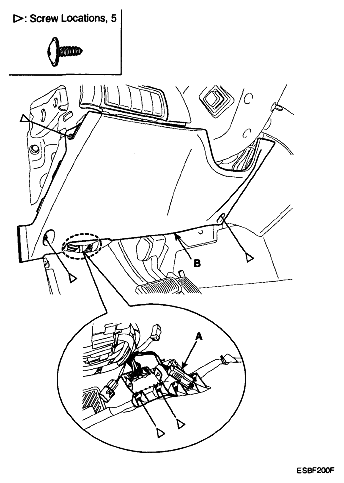

Fig 1: Identifying Connector And Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
