Home › Hyundai › 2009 › Azera GLS › Repair and Diagnosis › Steering › Power Steering › Mechanical Power Steering System › Power Steering Gear Box › Components

Power Steering Gear Box: Components

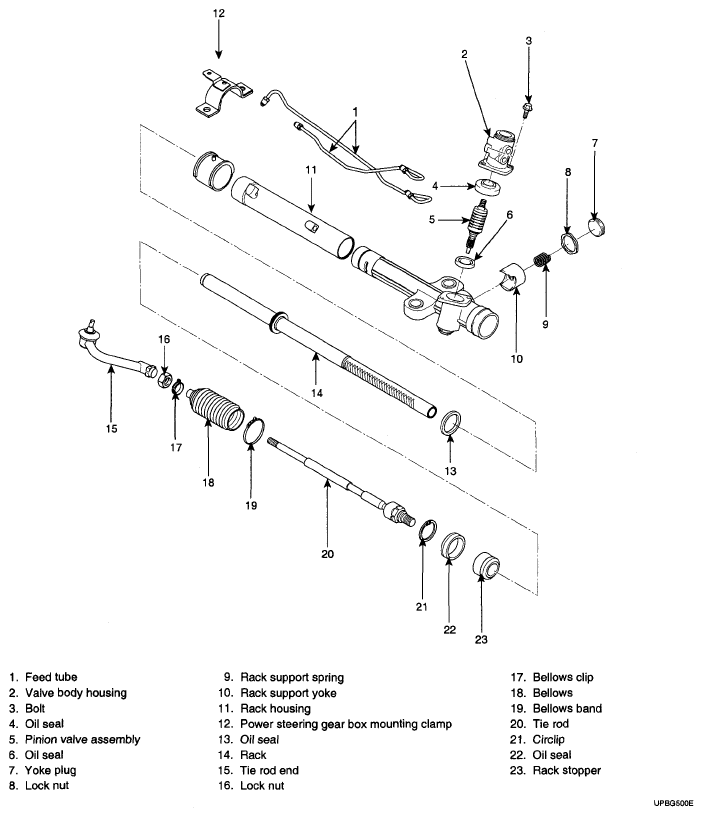

Fig 1: Identifying Power Steering Gear Box Components
G04880547Courtesy of HYUNDAI MOTOR CO.
