Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control/Fuel System (G4GC-GSL 2.0)
›
Fuel Delivery System
›
Component Location
Component Location

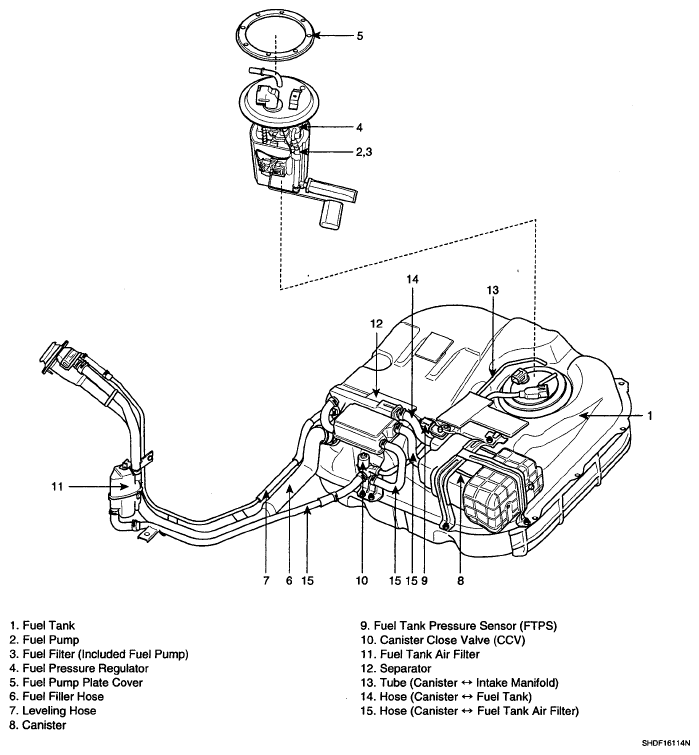

Fig 1: Identifying Fuel Delivery System Component Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
