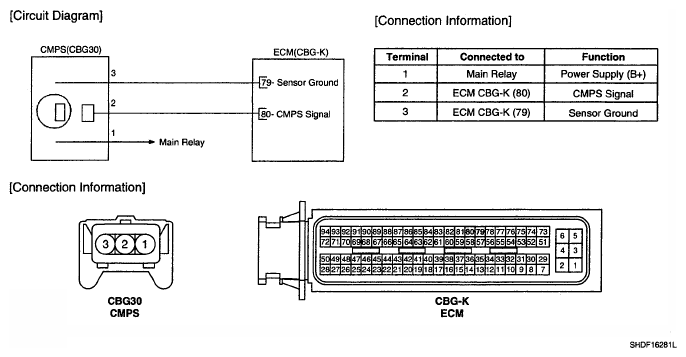

Home › Hyundai › 2009 › Elantra GLS, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control/Fuel System (G4GC-GSL 2.0) › Gasoline Engine Control System › Camshaft Position Sensor (CMPS) › Inspection › Circuit Diagram
