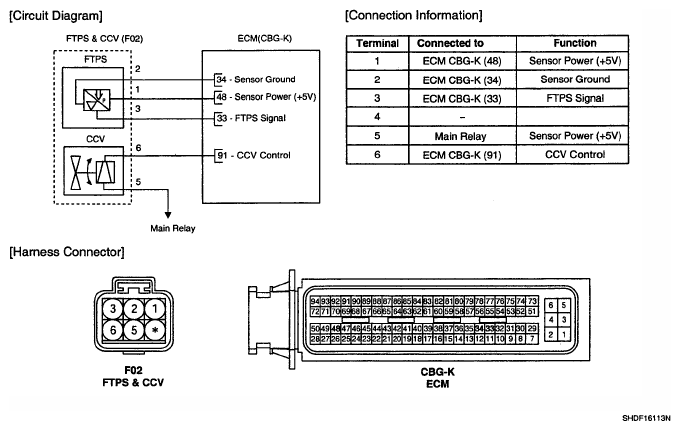

Home › Hyundai › 2009 › Elantra GLS, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control/Fuel System (G4GC-GSL 2.0) › Gasoline Engine Control System › Fuel Tank Pressure Sensor (Ftps) › Inspection › Schematic Diagram
