DTC P0501 Vehicle Speed Sensor A Range/Performance
›
Schematic Diagram
Schematic Diagram

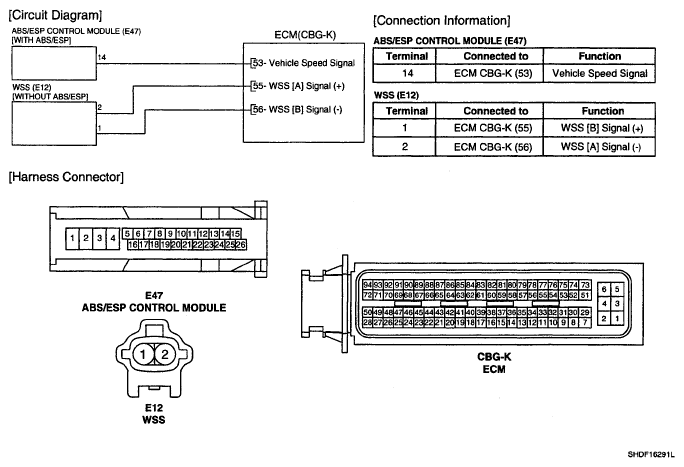

Fig 1: Vehicle Speed Sensor A Range/Performance - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
