Charging System: Alternator: Components

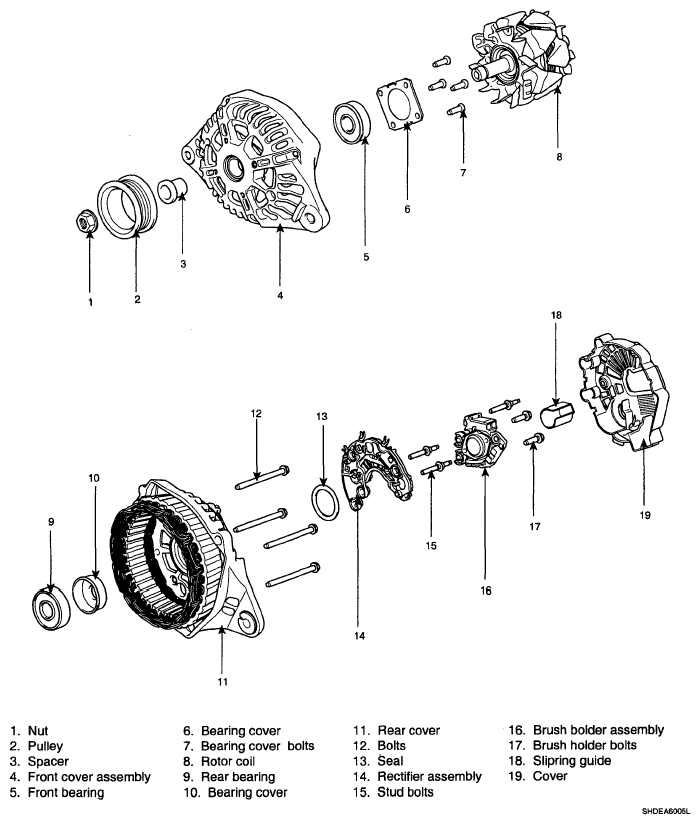

Fig 1: Identifying Alternator Components
G05363619Courtesy of HYUNDAI MOTOR CO.
