DTC P0315 Segment Time Acquisition Incorrect
›
Schematic Diagram
Schematic Diagram

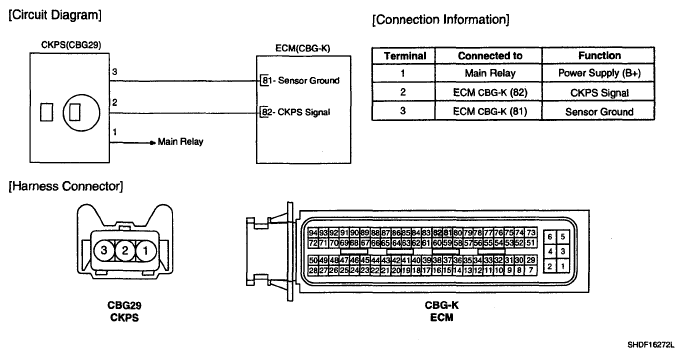

Fig 1: CKPS - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
