Components (2)

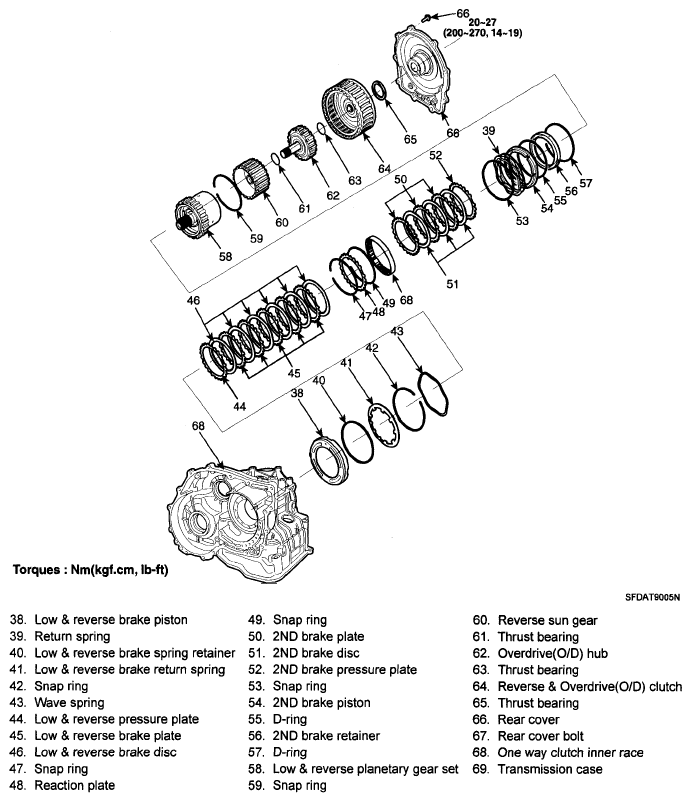

Fig 1: Identifying Automatic Transaxle Components
G06136491Courtesy of HYUNDAI MOTOR CO.
