Circuit Diagram
Circuit Diagram

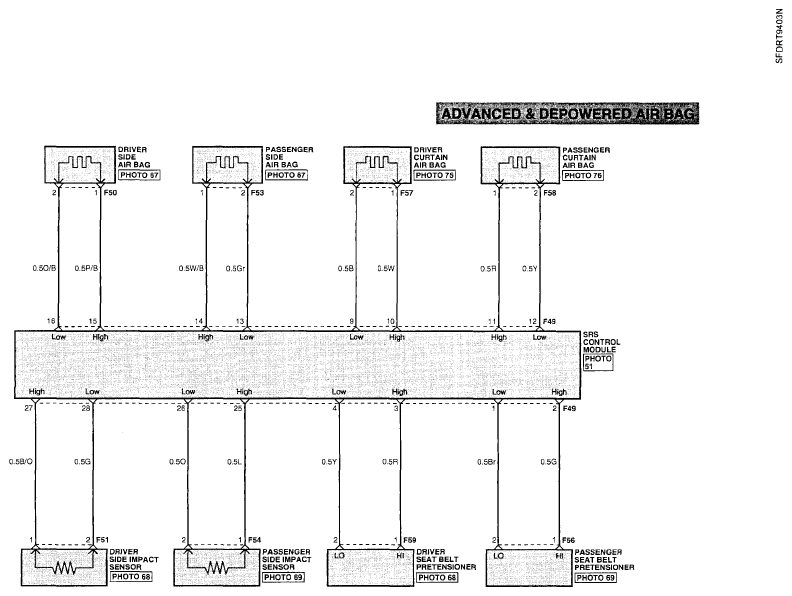

Fig 1: Restraint Circuit Diagram (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

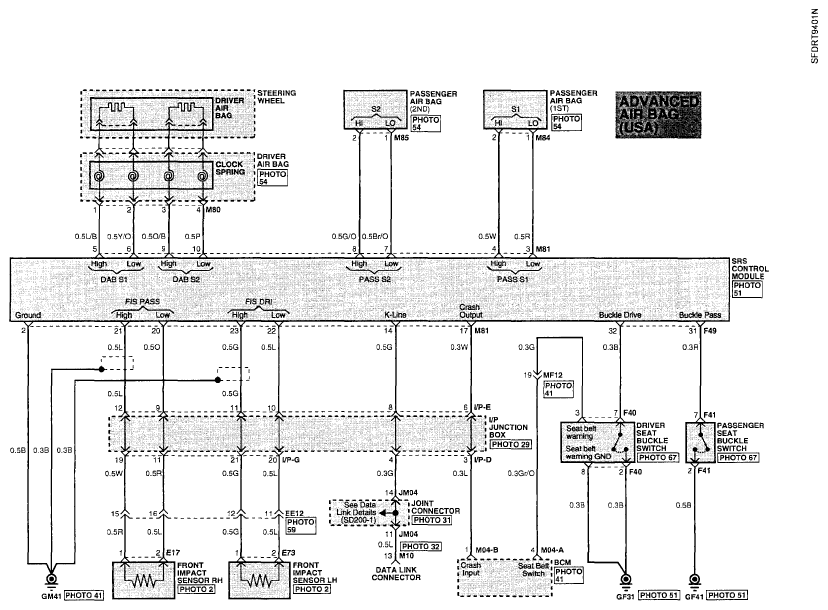

Fig 2: Restraint Circuit Diagram (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

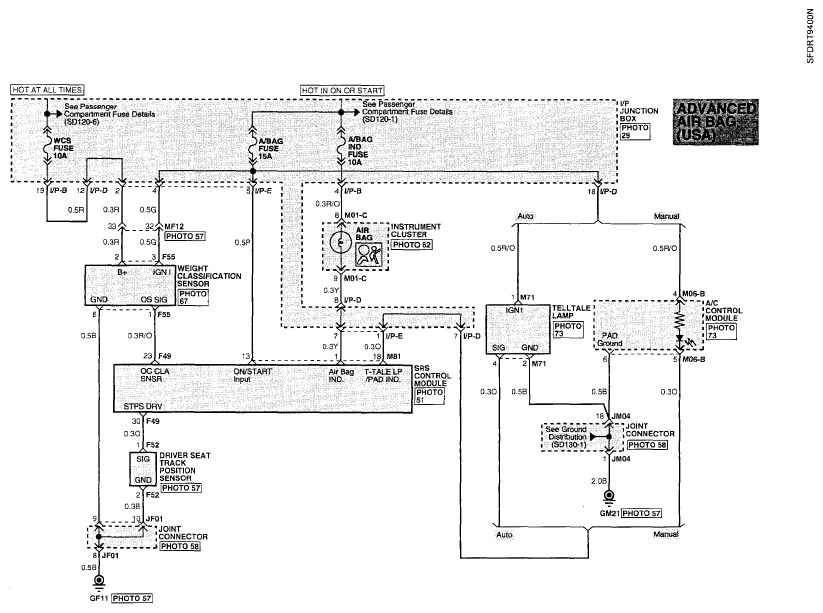

Fig 3: Restraint Circuit Diagram (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

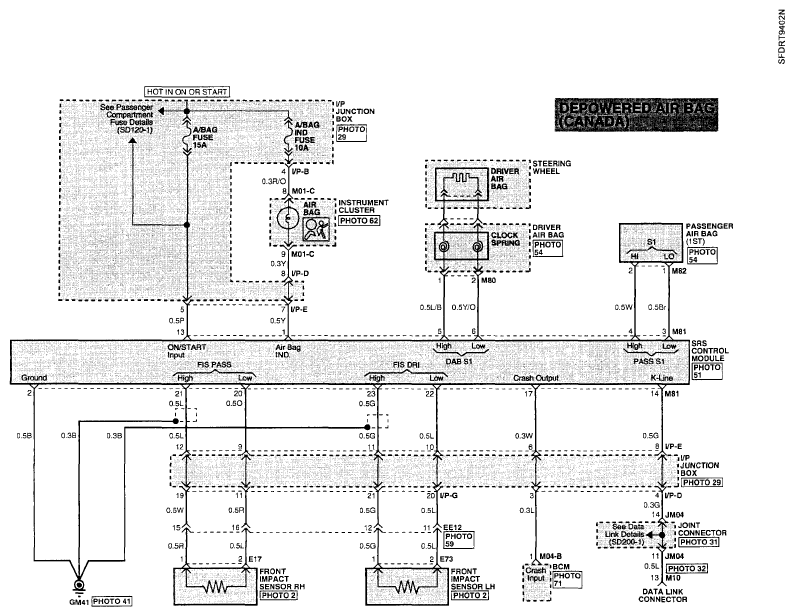

Fig 4: Restraint Circuit Diagram (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
