Diagnostic Circuit Diagram: Notes

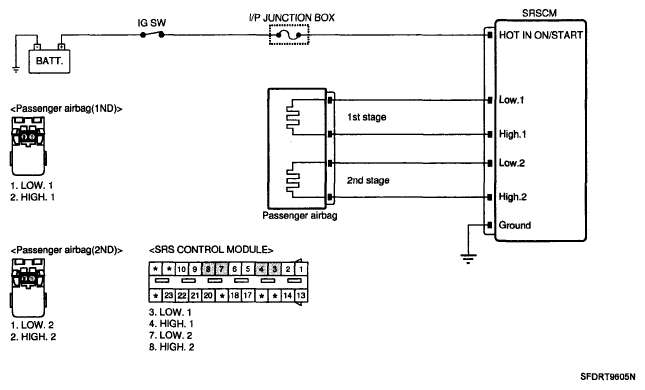

Fig 1: Passenger Airbag Resistance Circuit Short To Ground (2nd Stage) - Circuit Diagram
G06144640Courtesy of HYUNDAI MOTOR CO.
