Chart 4

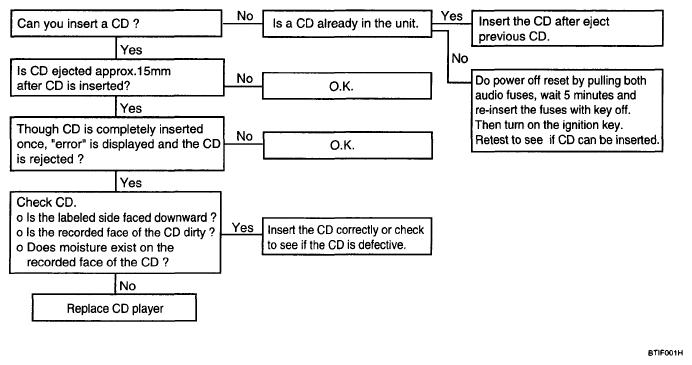

Fig 1: Troubleshooting Flow Chart - CD Will Not Be Accepted

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Troubleshooting Flow Chart - No Sound

Courtesy of HYUNDAI MOTOR CO.

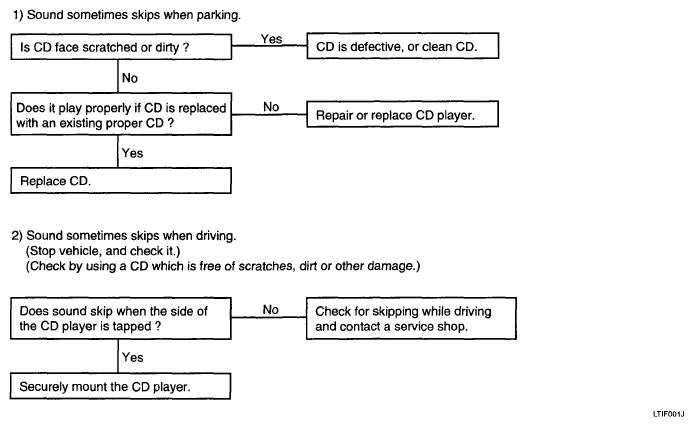

Fig 3: Troubleshooting Flow Chart - CD Sound Skips

Courtesy of HYUNDAI MOTOR CO.

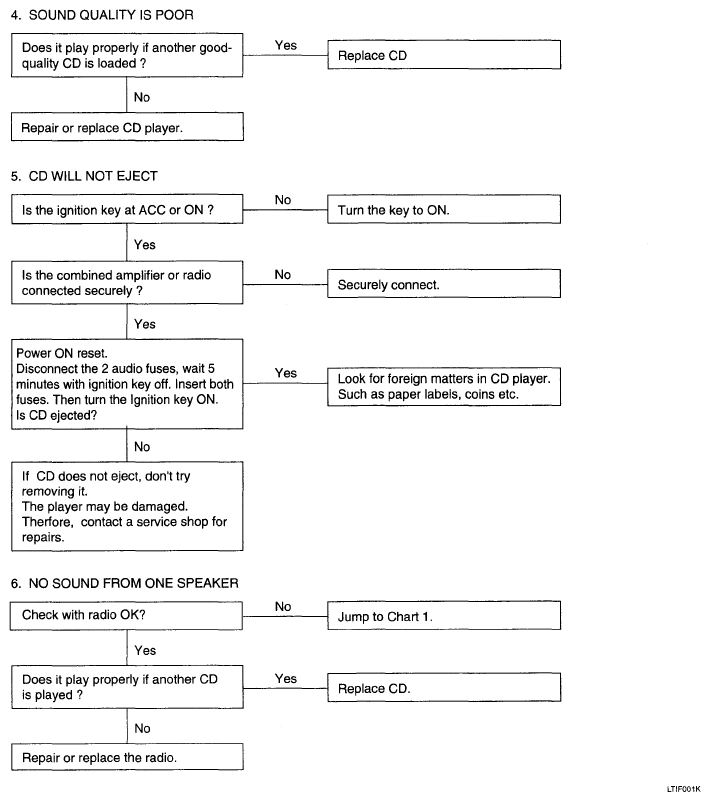

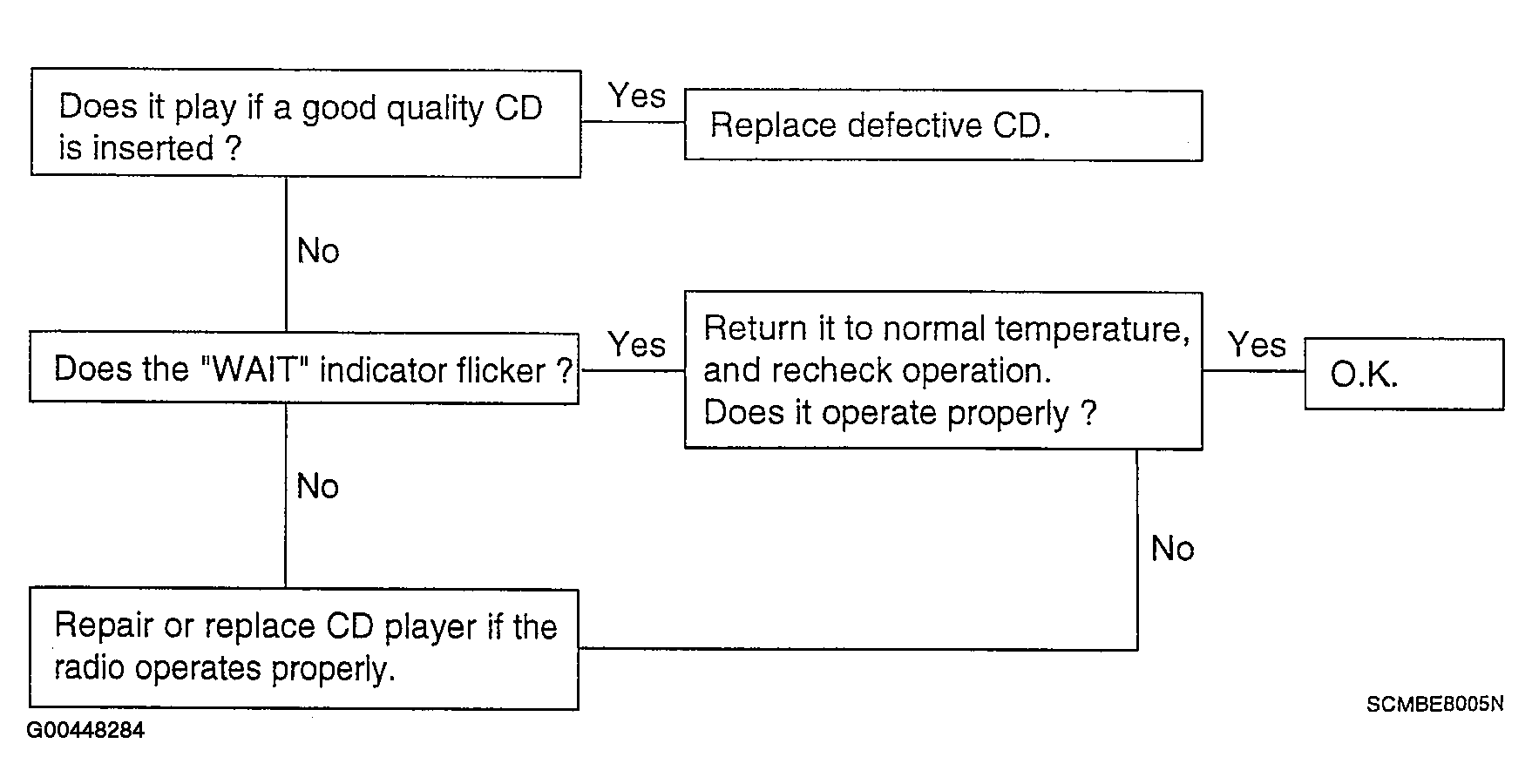

Fig 4: Troubleshooting Flow Chart - Sound Quality Is Poor

Courtesy of HYUNDAI MOTOR CO.
