ESC Circuit Diagrams

ESC CIRCUIT DIAGRAM (2)

Fig 1: ESC Circuit Diagram (1)

Courtesy of HYUNDAI MOTOR CO.

ESC CIRCUIT DIAGRAM (2)

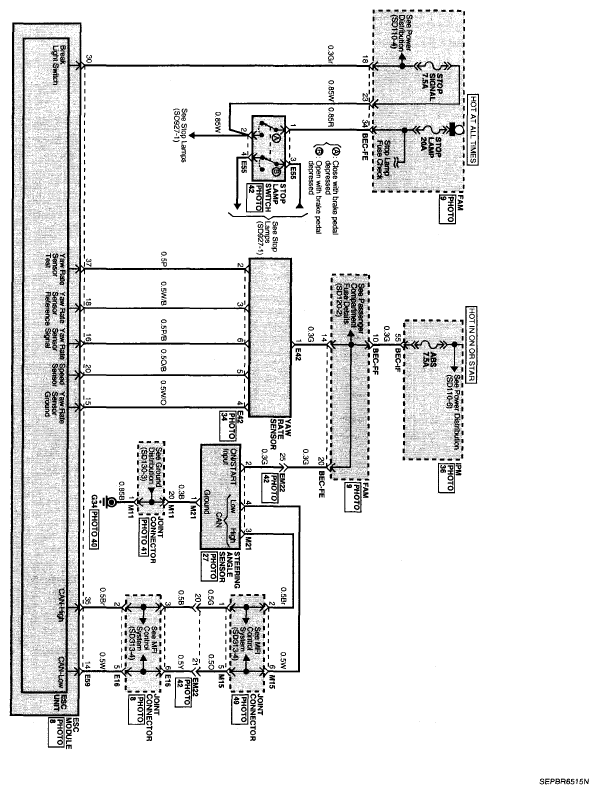

Fig 2: ESC Circuit Diagram (2)

Courtesy of HYUNDAI MOTOR CO.

ESC CIRCUIT DIAGRAM (3)

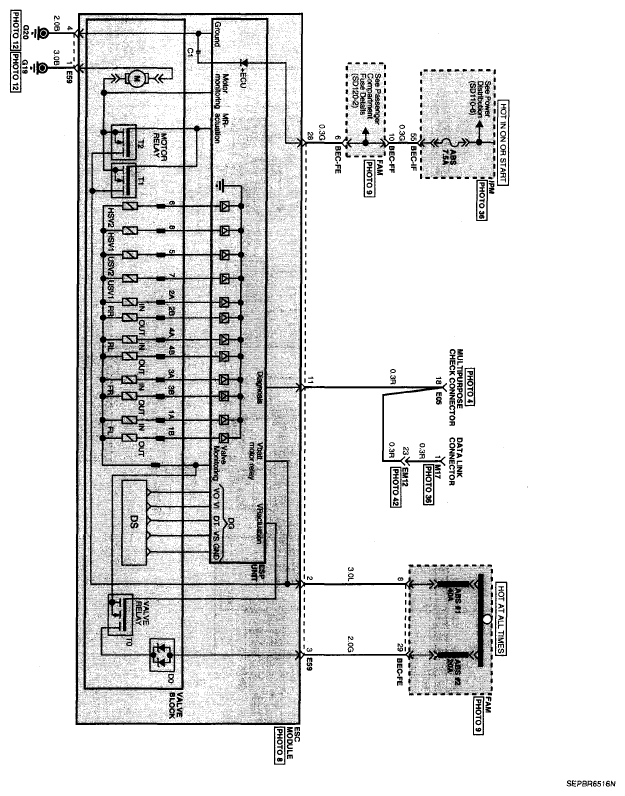

Fig 3: ESC Circuit Diagram (3)

Courtesy of HYUNDAI MOTOR CO.
