Fuel Delivery System: Components

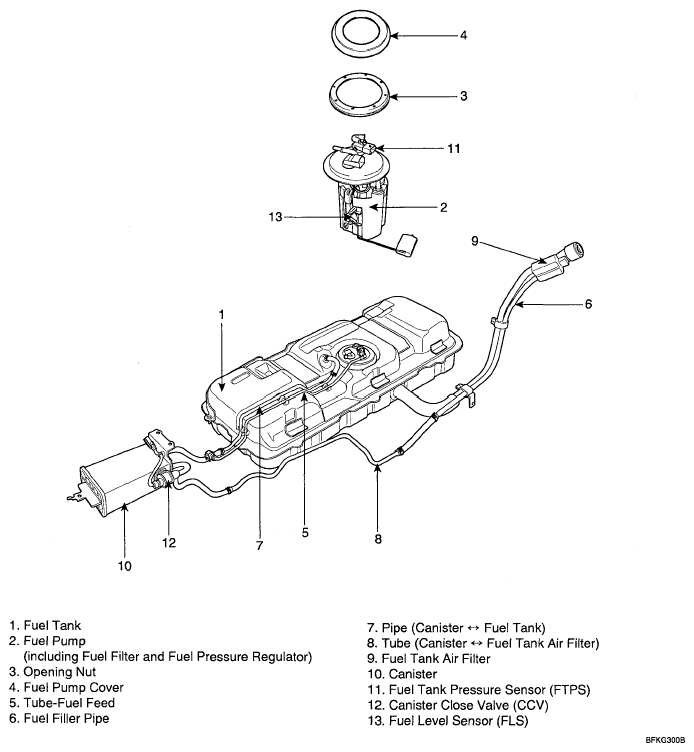

Fig 1: Identifying Fuel Delivery System Components
G05536055Courtesy of HYUNDAI MOTOR CO.
