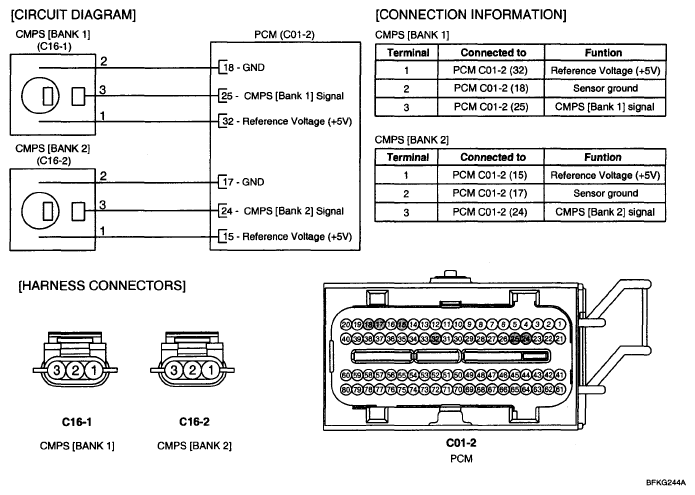

Home › Hyundai › 2009 › Entourage GLS › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control/Fuel System (G6DA - GSL 3.8) › Gasoline Engine Control System › Camshaft Position Sensor (CMPS) › Description › Schematic Diagram
