Crankshaft Position Sensor (CKPS)
›
Description
›
Schematic Diagram
Schematic Diagram

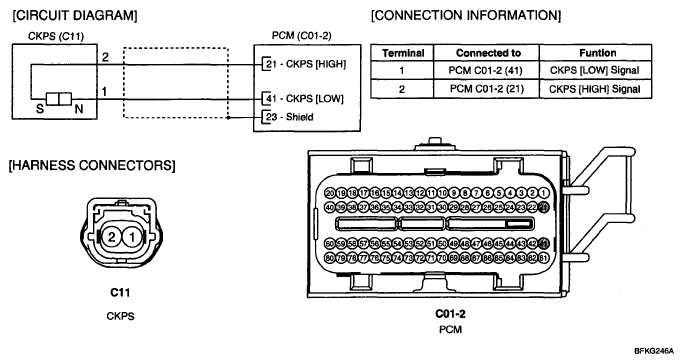

Fig 1: Crankshaft Position Sensor (CKPS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
