Immobilizer Control System Connector End View

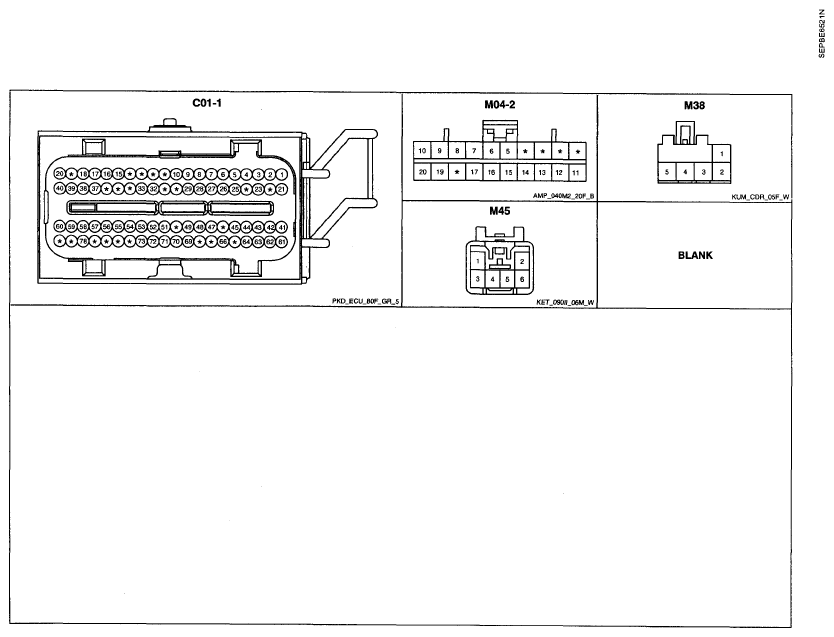

Fig 1: Immobilizer Control System Connector End View
G05325474Courtesy of HYUNDAI MOTOR AMERICA
