Engine Control/Fuel System (G6DA - GSL 3.8)
›
Gasoline Engine Control System
›
Etc (Electric Throttle Control) System
›
Description
›
Schematic Diagram
Schematic Diagram

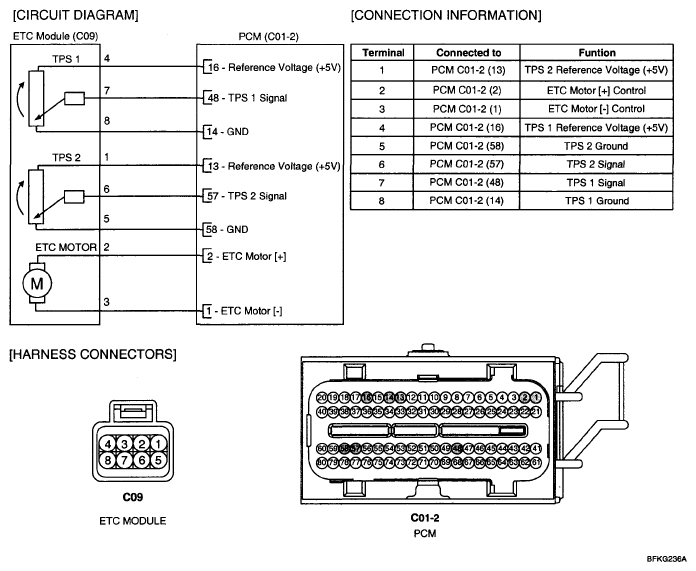

Fig 1: ETC (Electronic Throttle Control) System - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
