Immobilizer Control Unit: Removal

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel (A). (Refer to "CRASH PAD ").

Fig 1: Identifying Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the reinforcing panel (A).

Fig 2: Identifying Reinforcing Panel
Courtesy of HYUNDAI MOTOR CO.
Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a nut (B).

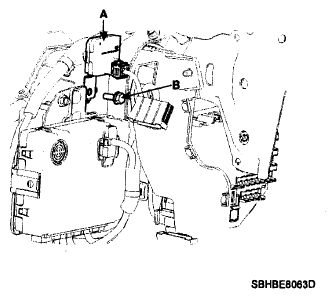

Fig 3: Identifying Smartra Unit 5P Connector And Nut
Courtesy of HYUNDAI MOTOR CO.
