Variant coding
- Connect scantool to Data Link Connector(DLC).
- IG "ON"

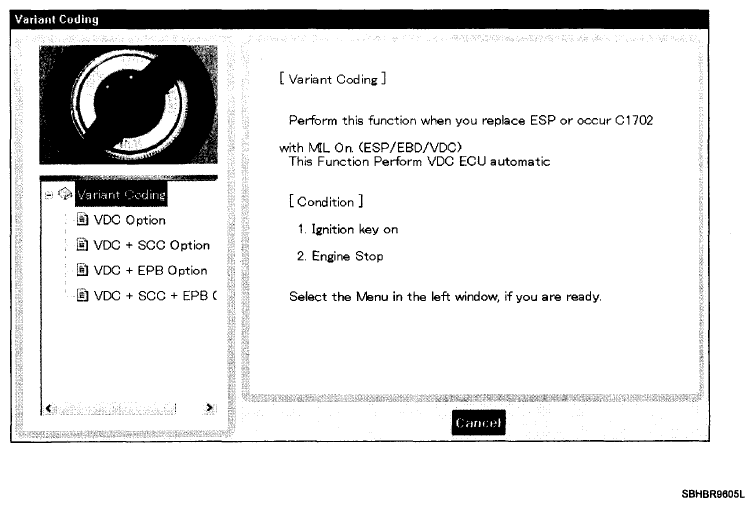

- Using scantool, Perform Variant coding program. (Fig 1)
- IG "OFF" and wait for about 10 seconds, and then IG "ON"
- IG "OFF" and wait for about 10 seconds again, and then, IG "ON
- Go to "COMPONENT INSPECTION " procedure.
