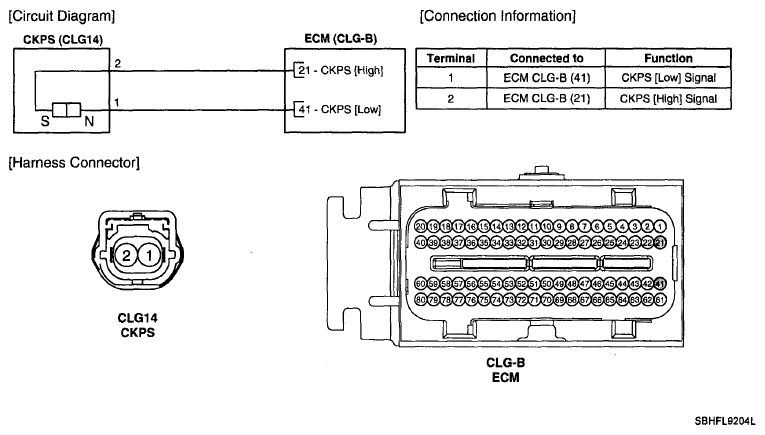

Home › Hyundai › 2009 › Genesis 3.8 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System (G6DB/G6DA - GSL 3.3/3.8)) › Crankshaft Position Sensor (CKPS) › Circuit Diagram
