Variant Coding

In case replacement the new head unit, should be variant coding at the engineering mode.

1. Check below information about hardware devices in system or vehicle with GDS.
   VARIANT CODING CHART



   Information	Setting
   CCP	NA/CANADA
   DVD Region Code	Region code (01)
   DVD Language	English
   Navigation	ON
   MTS	OFF
   SDS	ON
   RSE	OFF
   TV Analog	OFF
   DMB	OFF
   Media Unit	ON
   XM Radio	ON
   HD Radio	ON
   Rear Camera	ON
   Front Camera	ON
   ECS Height	ON
   ECS Suspension	ON
   US Unit	ON (mile)
   	OFF (Km)
   AQS	ON
   Bluetooth	ON
   Steering Easy Access	ON or OFF
   Seat Easy Access	ON
   Door Lock Sound	ON

2. Select the "GDS VIN Search".
   Fig 1: Screen Display - Select "GDS VIN Search"

   Courtesy of HYUNDAI MOTOR CO.
3. Select the "Vehicle/Year/Engine" and select item "DIS".

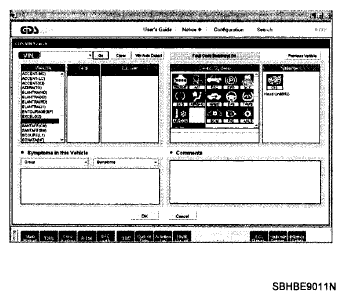

   Fig 2: Screen Display - Select "Vehicle/Year/Engine"

   Courtesy of HYUNDAI MOTOR CO.
   Fig 3: Screen Display - Select Item "DIS"

   Courtesy of HYUNDAI MOTOR CO.
4. Select the "Variant coding write" then click the "OK".

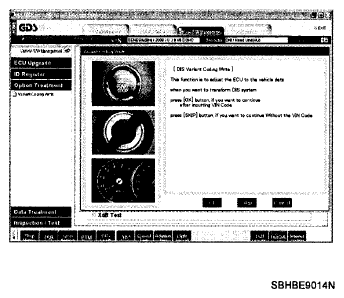

   Fig 4: Screen Display - Select "Variant Coding Write"

   Courtesy of HYUNDAI MOTOR CO.

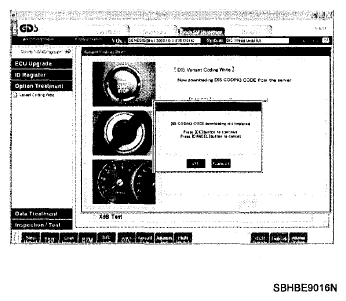

   Fig 5: Screen Display - Click "OK"

   Courtesy of HYUNDAI MOTOR CO.
5. Input the VIN code and click the "OK".

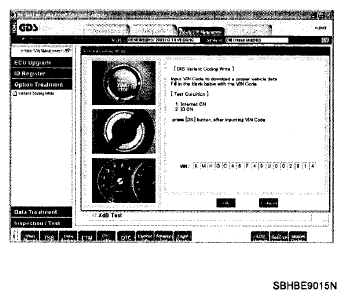

   Fig 6: Screen Display - Input VIN Code

   Courtesy of HYUNDAI MOTOR CO.
   Fig 7: Screen Display - Click "OK"

   Courtesy of HYUNDAI MOTOR CO.
6. Select the item which you want to change. And change the value within combo box.

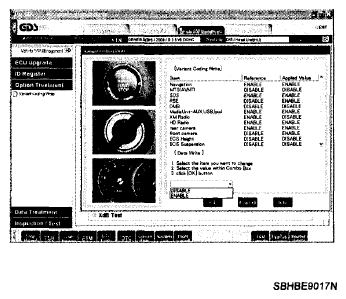

   Fig 8: Screen Display - Select Item For Change

   Courtesy of HYUNDAI MOTOR CO.

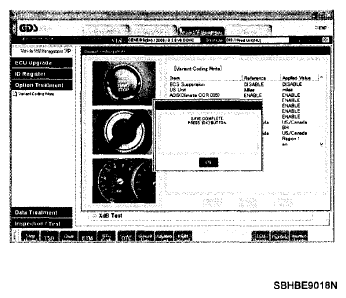

   Fig 9: Screen Display - Change Value Within Combo Box

   Courtesy of HYUNDAI MOTOR CO.
7. Click the "OK" then complete the variant coding write process.
