Audio Unit: Components

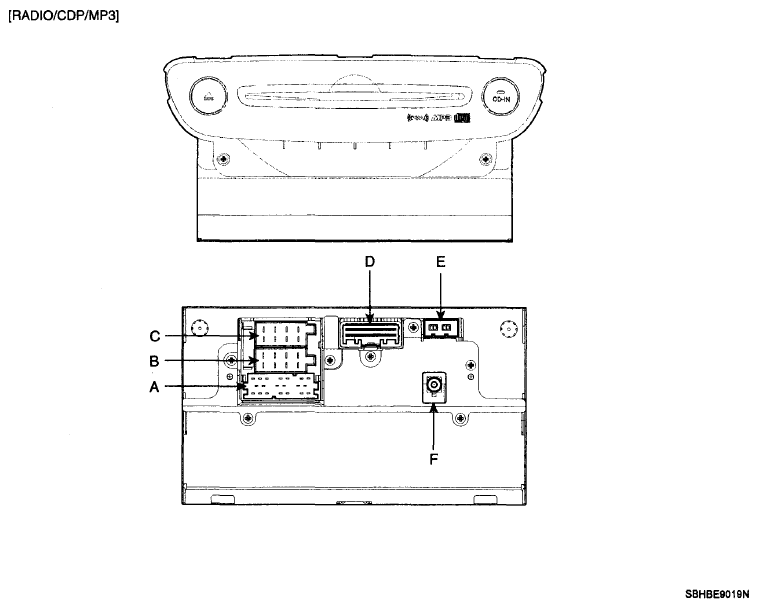

Fig 1: Identifying Audio Unit Components
G06103524Courtesy of HYUNDAI MOTOR CO.

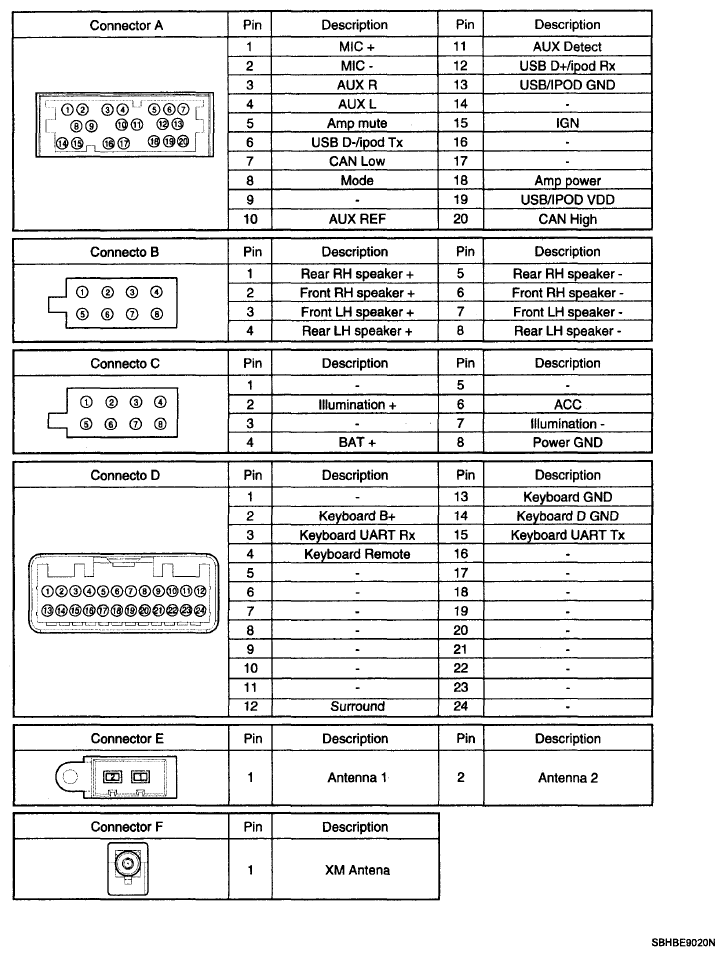

Fig 2: Identifying Audio Unit Connector Terminals
G06103525Courtesy of HYUNDAI MOTOR CO.

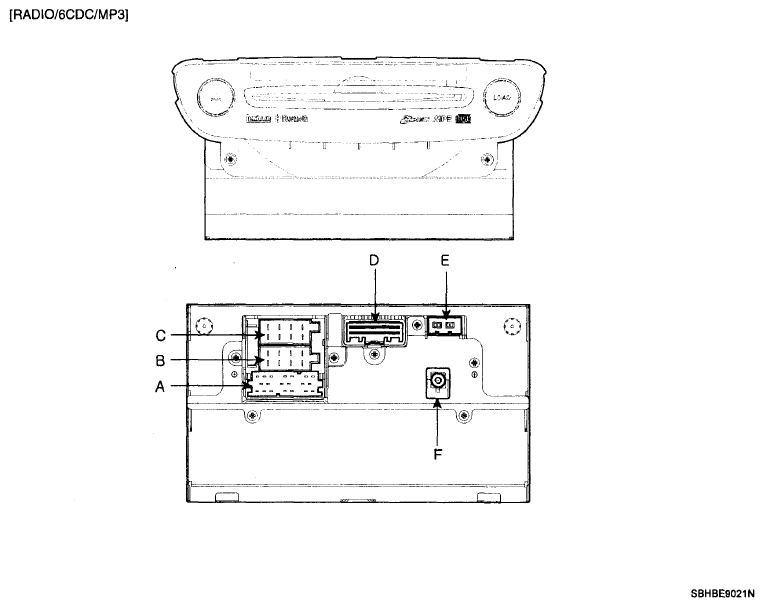

Fig 3: Identifying Radio/6CDC/MP3 Components
G06103526Courtesy of HYUNDAI MOTOR CO.
Fig 4: Identifying Radio/6CDC/MP3 Connector Terminals
G06103525Courtesy of HYUNDAI MOTOR CO.

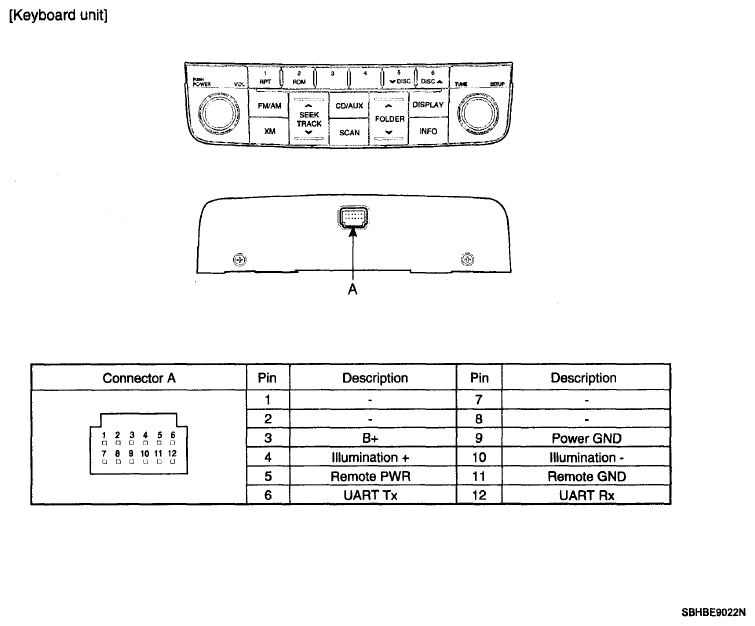

Fig 5: Identifying Keyboard Unit Components
G06103528Courtesy of HYUNDAI MOTOR CO.
Fig 6: Identifying Keyboard Unit Connector Terminals
G06103529Courtesy of HYUNDAI MOTOR CO.
