Keyboard Unit

Disconnect the negative (-) battery terminal.
Remove the cluster fascia panel. (Refer to CRASH PAD ))
Remove the crash pad side garnish (A) after removing the screws.

Fig 1: Identifying Crash Pad Side Garnish With Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the center fascia panel (A) after removing the screws.

Fig 2: Identifying Center Fascia Panel With Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the connectors (A).

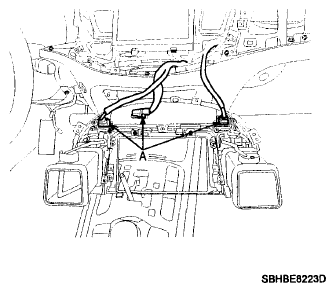

Fig 3: Identifying Keyboard Unit Connectors
Courtesy of HYUNDAI MOTOR CO.
Remove the keyboard unit (A) after removing the screws.

Fig 4: Identifying Keyboard Unit With Screws
Courtesy of HYUNDAI MOTOR CO.
