Rear Wheel Speed Sensor: Removal

Remove the rear wheel speed sensor mounting bolt.
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Identifying Rear Wheel Speed Sensor Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the rear wheel guard.
Disconnect the rear wheel speed sensor connector (A), then remove the rear wheel speed sensor.

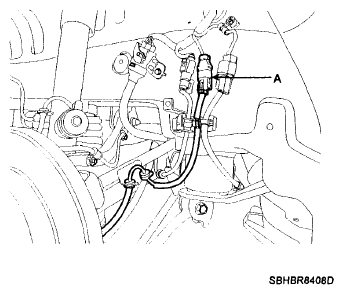

Fig 2: Identifying Rear Wheel Speed Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
