Cluster Connector Terminals

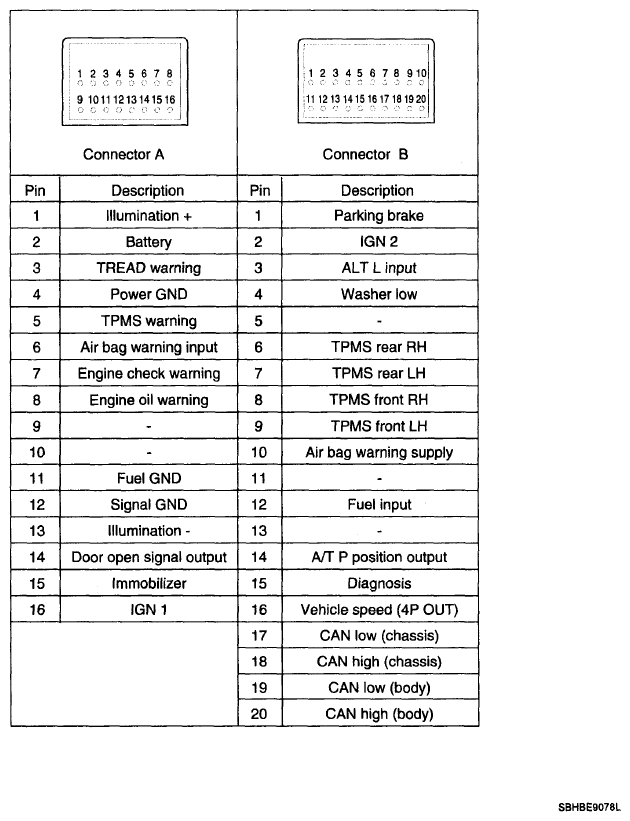

Fig 1: Identifying Cluster Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
