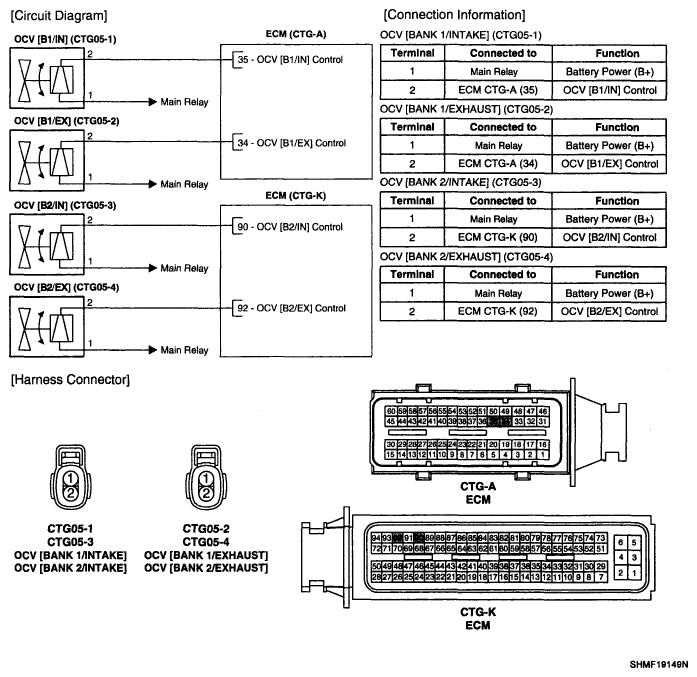

Home › Hyundai › 2009 › Genesis 4.6 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System (G8BA - GSL 4.6)) › CVVT Oil Control Valve (OCV) › Circuit Diagram
