Santa Fe GLS, AWD
›
Repair and Diagnosis (Single Page)
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
OC Module Connector End View
OC Module Connector End View

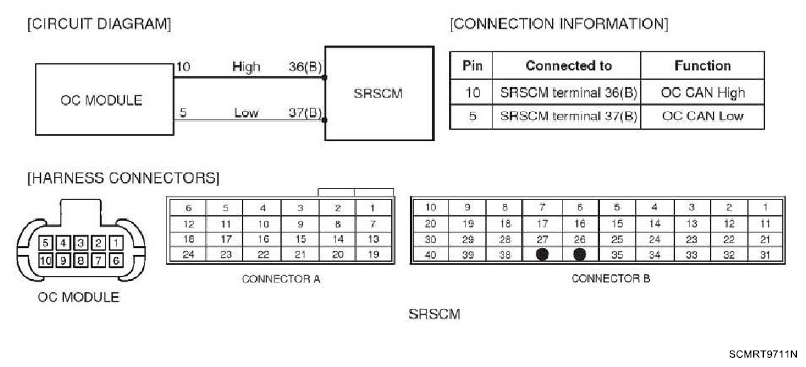

Fig 1: OC Module Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
