ESP Control Unit: Components

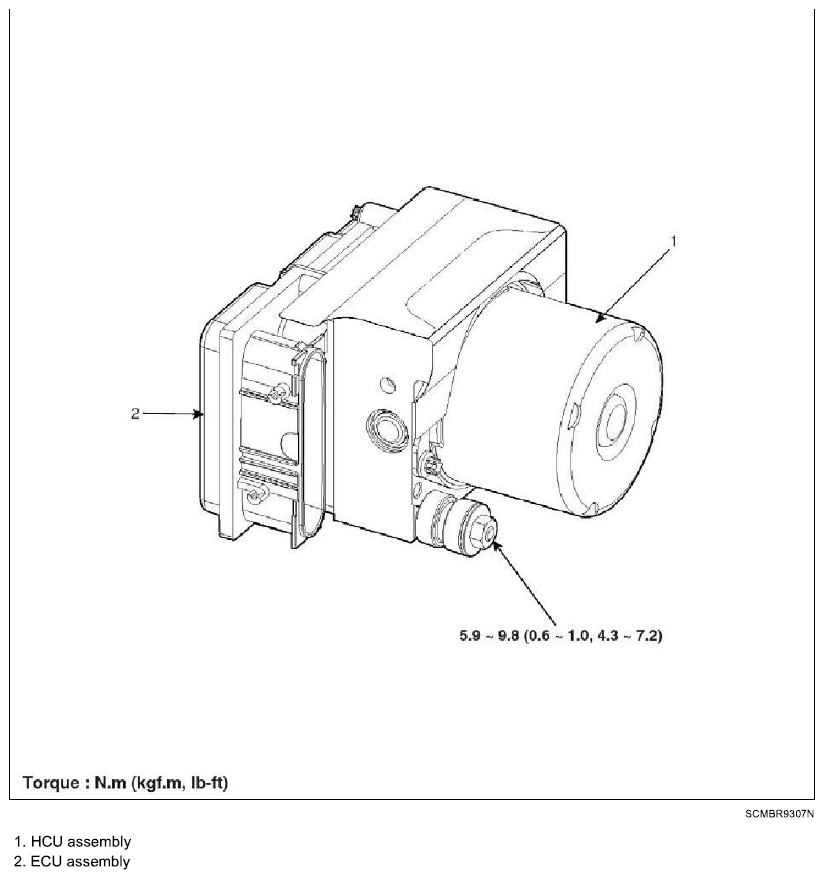

Fig 1: ESP Control Unit Components With Torque Specifications
G06220336Courtesy of HYUNDAI MOTOR CO.
