Check the Ground Circuit
- Disconnect the connector from the ESC control module.

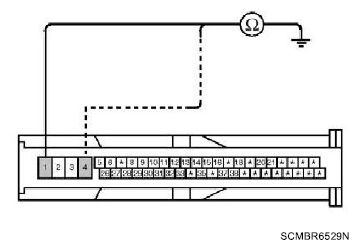

- Check for continuity between terminals 1,4 of the ESC control module harness side connector and ground point.
- Is there continuity?
YES
- Check the wheel speed sensor circuit.
NO
- Repair an open in the wire and ground point.
