Accelerator Position Sensor Connector End View
Accelerator Position Sensor Connector End View

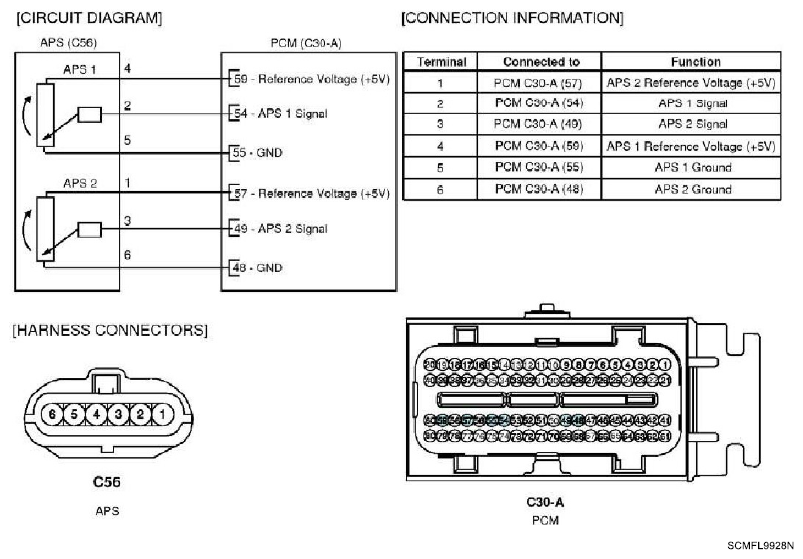

Fig 1: Accelerator Position Sensor Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
