Engine Coolant Temperature Sensor Connector End View
Engine Coolant Temperature Sensor Connector End View

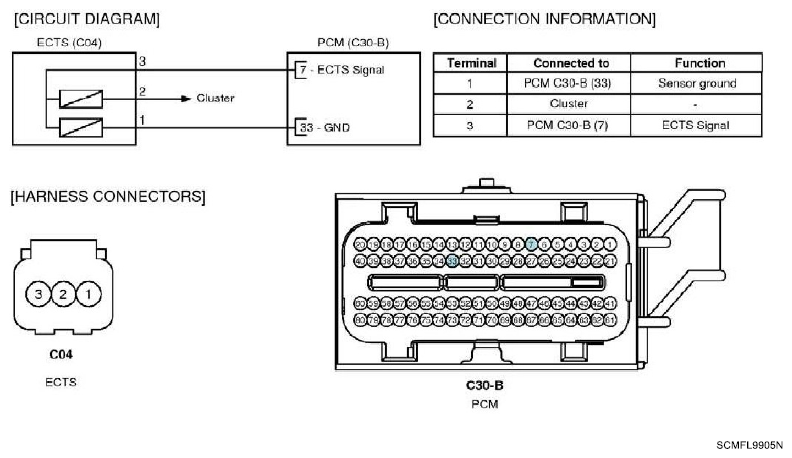

Fig 1: Engine Coolant Temperature Sensor Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
